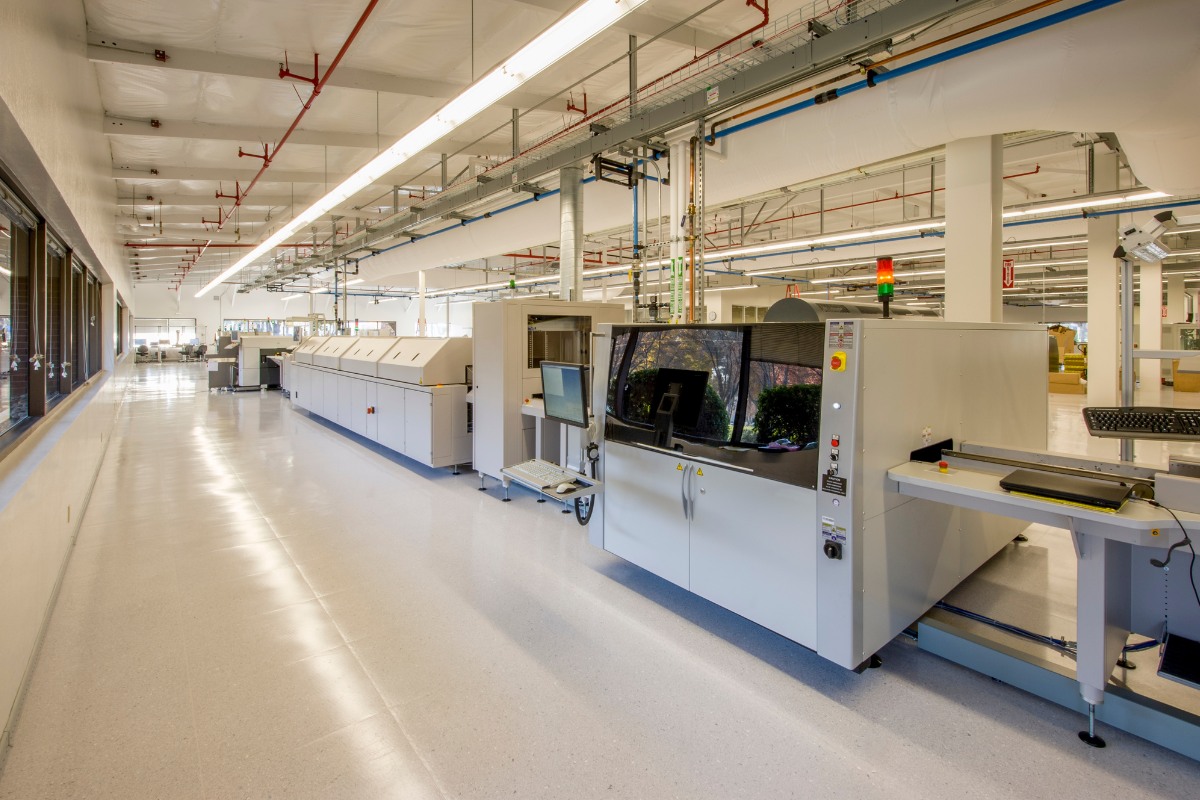

What is an SMT Line? A Guide to SMT Assembly Line Process and Equipment

Surface Mount Technology (SMT) has revolutionized electronics manufacturing. This guide explains what an SMT line is, how it works, and the equipment involved.

What is Surface Mount Technology (SMT)

Surface Mount Technology (SMT) is a method of electronic circuit board manufacturing where components are mounted directly onto the surface of printed circuit boards (PCBs). This innovative approach has largely supplanted the older through-hole technology, marking a significant advancement in electronics assembly.

At its core, SMT involves placing electronic components, known as surface-mount devices (SMDs), onto pads or lands on the PCB surface. These components are typically much smaller than their through-hole counterparts and are designed to be mounted on one side of the PCB, rather than having leads inserted through holes in the board.

The SMT process generally consists of three main steps: applying solder paste to the board, placing components onto the paste, and then heating the assembly to melt the solder, creating permanent electrical and mechanical connections. This method allows for higher component density, faster assembly, and improved electrical performance due to shorter connection paths.

The SMT Assembly Line Process

The SMT assembly line process is a sophisticated sequence of steps that transforms bare PCBs into fully functional electronic assemblies.

Material Preparation and Inspection

The SMT process begins with thorough preparation and inspection of materials. This first step ensures that only high-quality components and PCBs enter the production line, minimizing defects and potential issues downstream.

During this stage, PCBs are carefully inspected for any physical damage, such as warping or scratches. The boards are also checked for cleanliness, as any contaminants could interfere with solder paste adhesion or component placement. Electronic components are verified for correct specifications and inspected for any visible defects.

Advanced inspection systems, including automated optical inspection (AOI) machines, may be employed to rapidly and accurately assess large quantities of components. These systems can detect issues such as bent leads, incorrect polarity, or dimensional inconsistencies that might be missed by manual inspection.

The preparation process also involves organizing components for efficient retrieval during the assembly process. This might include loading components into feeders or trays that are compatible with pick-and-place machines. Proper organization at this stage is crucial for maintaining the speed and accuracy of the subsequent assembly steps.

Solder Paste Printing

Once the materials have been prepared and inspected, the next step is applying solder paste to the PCB. This process lays the foundation for component attachment and electrical connections.

Solder paste, a mixture of tiny solder particles and flux, is applied to the PCB using a stencil printer. The stencil, typically made of stainless steel or nickel, has openings that correspond to the solder pad locations on the PCB. The printer aligns the stencil with the PCB and then uses a squeegee to force solder paste through the stencil openings onto the board.

The amount and placement of solder paste must be carefully controlled to ensure reliable solder joints. Too little paste can result in weak connections, while too much can lead to solder bridges between adjacent pads.

Modern solder paste printers often incorporate advanced features such as automatic stencil cleaning, vision systems for alignment, and closed-loop pressure control to maintain consistent paste deposition. These technologies help ensure the repeatability and quality of the solder paste printing process.

Glue Dispensing and Solder Paste Inspection (SPI)

In some SMT processes, particularly those involving double-sided boards or components that might shift during reflow, a glue dispensing step is included, which applies small dots of adhesive to areas where components will be placed. The adhesive helps hold components in place during the assembly process, especially when the board is inverted for bottom-side assembly.

Following solder paste application (and glue dispensing if applicable), Solder Paste Inspection (SPI) is performance as a quality control step. SPI systems use advanced optical and laser measurement technologies to verify the volume, area, and height of solder paste deposits on the PCB.

SPI detects issues such as insufficient paste, excess paste, or misaligned deposits. Early identification of these problems prevents defects that would be much more costly to address later. Modern SPI systems can provide real-time feedback to the solder paste printer, allowing for automatic adjustments to maintain optimal paste deposition.

Component Placement

With solder paste (and potentially adhesive) applied, the next step is placing components onto the PCB. This is typically done using automated pick-and-place machines, also known as component placement systems.

These sophisticated machines use a combination of vision systems, precision robotics, and advanced software to accurately place components onto the PCB. The process begins with the machine identifying the correct component from its feeders or trays. Then, it picks up the component, often using a vacuum nozzle, and transports it to the correct location on the PCB.

Before placing the component, the machine uses its vision system to ensure proper alignment. It may make fine adjustments to the component’s position to ensure it aligns perfectly with the solder paste deposits. The component is then gently placed onto the board, pressing it slightly into the solder paste.

Modern pick-and-place machines can handle a wide variety of component types and sizes, from tiny 0201 resistors to large ball grid array (BGA) packages. They can place components with incredible speed and accuracy, with some high-end machines capable of placing tens of thousands of components per hour with placement accuracies measured in micrometers.

Glue Curing

If adhesive was applied in step 3, a curing process may be necessary at this point to solidify the adhesive, ensuring that components remain firmly in place during subsequent handling and processing.

Curing methods can vary depending on the type of adhesive used. Some adhesives cure at room temperature over time, while others require exposure to heat or ultraviolet light to accelerate the curing process. In a high-volume production environment, accelerated curing is often preferred to maintain production speed.

The curing process must be carefully controlled to ensure that the adhesive reaches its full strength without damaging the components or the PCB. Overheating, for instance, could potentially damage sensitive electronic components or cause warping of the PCB.

Reflow Soldering

Reflow soldering is the process where the solder paste is melted to create permanent electrical and mechanical connections between the components and the PCB. This is typically done in a reflow oven, which precisely controls the temperature profile the assembly is exposed to.

The reflow process typically involves four main phases:

1. Preheat: The assembly is gradually heated to evaporate solvents in the solder paste and activate the flux.
2. Soak: The temperature is held steady to allow thermal equalization across the board and components.
3. Reflow: The temperature is raised above the melting point of the solder, typically around 220°C for lead-free solders.
4. Cooling: The assembly is gradually cooled to allow the solder to solidify, forming strong, reliable joints.

The exact temperature profile used depends on factors such as the type of solder paste, the thermal characteristics of the components and PCB, and the complexity of the assembly. Modern reflow ovens often have multiple heating zones to provide precise control over the temperature profile.

During reflow, surface tension in the molten solder helps to align components, a phenomenon known as self-alignment. This can help correct minor misalignments from the placement process.

Proper control of the reflow process is crucial. Insufficient heating can result in cold solder joints, while overheating can damage components or cause the PCB to warp. The cooling rate is also important, as it affects the microstructure of the solder joints and thus their long-term reliability.

Cleaning

After reflow soldering, a cleaning step is needed to remove flux residues and other contaminants from the assembly. The necessity and method of cleaning depend on the type of solder paste used and the requirements of the final product.

There are two main approaches to cleaning in SMT assembly:

1. No-clean process: Many modern solder pastes are formulated to leave minimal, non-corrosive residues, eliminating the need for cleaning in many applications. This can save time and reduce the use of cleaning chemicals.
2. Cleaning process: When cleaning is necessary, it typically uses specialized cleaning solutions and equipment. This might include spray-in-air systems, ultrasonic cleaners, or vapor degreasers. The choice of cleaning method depends on factors such as the type of residue, the components’ sensitivity to cleaning processes, and environmental considerations.

Cleaning is particularly important for assemblies that will be used in harsh environments or that require high reliability, such as aerospace or medical applications. Proper cleaning can improve the long-term reliability of the assembly by preventing corrosion and reducing the risk of electrical leakage.

Inspection

A thorough inspection is carried out at this stage to ensure the assembly meets all specifications.

1. Automated Optical Inspection (AOI): AOI systems use high-resolution cameras and sophisticated image processing algorithms to detect defects such as missing components, incorrect component placement, poor solder joints, and solder bridges.
2. X-ray Inspection: This is particularly useful for inspecting hidden solder joints, such as those under BGA components. X-ray systems can detect voids in solder joints, insufficient solder, and other defects that are not visible from the surface.
3. In-Circuit Testing (ICT): While not strictly an inspection method, ICT can detect both manufacturing defects and faulty components by applying electrical signals to the circuit and measuring the responses.
4. Functional Testing: This involves powering up the assembly and verifying that it performs its intended functions correctly.

These inspection methods are often used in combination to provide comprehensive quality assurance. The data gathered during inspection can also be used to refine earlier stages of the process, creating a feedback loop that continually improves quality.

Repair and Retest

Some assemblies may fail inspection and will enter the repair and retest stage.

Repair in SMT can be challenging due to the small size of components and the density of modern PCBs. It often requires specialized equipment such as hot-air rework stations or infrared heating systems. Skilled technicians use these tools to remove and replace faulty components or correct other defects such as solder bridges.

After repair, the assembly is retested to ensure the repair was successful and that no new issues were introduced during the repair process. This might involve repeating some or all of the inspection steps described earlier. The repair and retest process is crucial for maximizing yield and minimizing waste. Preventing defects through process control is generally more cost-effective than relying heavily on repair. Therefore, data from the repair process is often analyzed to identify recurring issues, which can then be addressed in earlier stages of the production process.

Essential SMT Line Equipment

An efficient and effective SMT line relies on a suite of specialized equipment. Each piece of machinery has its role in the assembly process.

SMT Loader

The SMT loader, also known as a magazine loader or board loader, is the starting point of the SMT assembly line. It automatically feeds bare PCBs into the production line at a consistent rate.

Key features of SMT loaders include:

• Capacity to hold multiple PCB magazines
• Adjustable loading speed to match the pace of the production line
• Compatibility with various PCB sizes and thicknesses
• Sensors to detect PCB presence and orientation
• Integration with the line’s overall control system for seamless operation

The efficiency of the SMT loader helps maintain a steady flow of boards through the assembly process, minimizing downtime and maximizing throughput.

Stencil Printing Machine

The stencil printing machine, or solder paste printer, applies solder paste to the PCB in precise locations and quantities. It directly affects the quality of solder joints and, consequently, the reliability of the final product.

Modern stencil printers typically feature:

• High-precision alignment systems for accurate stencil-to-board registration
• Programmable paste pressure and speed control
• Automatic stencil cleaning systems
• Vision systems for paste inspection and alignment verification
• Capability to handle different stencil thicknesses and board sizes

The accuracy and repeatability of the stencil printer are paramount. Errors at this stage can lead to defects that are difficult or impossible to correct later in the process.

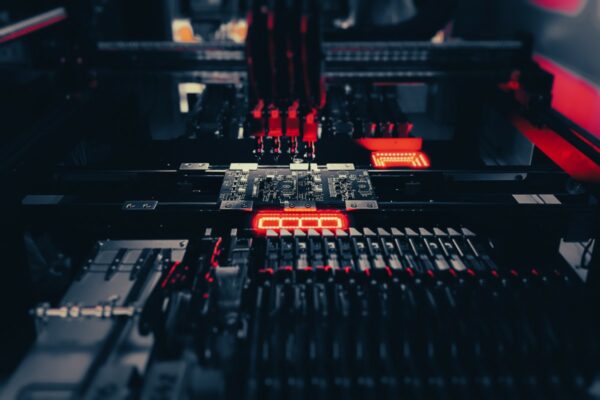

Pick and Place Machine

The pick and place machine, often considered the heart of the SMT line, is responsible for accurately placing components onto the PCB. These machines combine precision robotics, advanced vision systems, and sophisticated software to achieve high-speed, accurate component placement.

Key features:

• Multiple placement heads for simultaneous component placement
• Vision systems for component recognition and alignment
• Capability to handle a wide range of component types and sizes
• High placement accuracy (often down to micrometers)
• Flexible feeder systems to accommodate various component packaging
• Software for optimizing component placement sequence and machine efficiency

High-end machines can place tens of thousands of components per hour with exceptional precision.

Reflow Oven

The reflow oven is where solder paste is melted to create permanent electrical and mechanical connections between components and the PCB.

Key features:

• Multiple heating zones for precise temperature control
• Capability to store and run multiple temperature profiles
• Nitrogen atmosphere option for improved solder joint quality
• Cooling systems to control the rate of cooling after reflow
• Conveyor systems with adjustable speed and width
• Monitoring and data logging capabilities for process control and traceability

SMT Unloader

The SMT unloader, positioned at the end of the reflow oven, removes assembled PCBs from the production line, which is important in maintaining production flow and protecting freshly soldered assemblies.

Features include:

• Capacity to handle boards of various sizes and weights
• Gentle handling to avoid disturbing components while solder is still cooling
• Integration with the line’s control system for synchronized operation
• Options for sorting or binning boards based on predefined criteria
• Capability to interface with subsequent processes or inspection stations

Efficient unloading maintains the pace of production and ensures that completed assemblies are handled properly to prevent damage.

Solder Paste Inspection (SPI) Equipment

Solder Paste Inspection (SPI) is used immediately after the solder paste printing process, which verifies the quality of solder paste deposition before components are placed, allowing for early detection and correction of printing issues.

SPI systems key features:

• High-resolution cameras or laser measurement systems
• 3D measurement capabilities for assessing paste volume and height
• High-speed inspection to keep pace with production
• Programmable inspection parameters for different board designs
• Integration with the stencil printer for closed-loop process control
• Data logging and analysis capabilities for process improvement

SPI systems help prevent defects that would be much more costly to address later in production, by detecting issues such as insufficient paste, excess paste, or misaligned deposits early in the process.

Automated Optical Inspection (AOI) System

Automated Optical Inspection (AOI) systems use high-resolution cameras and sophisticated image processing algorithms to identify issues such as missing or misaligned components, poor solder joints, and solder bridges.

AOI systems:

• Multiple cameras for inspecting boards from different angles
• High-resolution imaging for detecting fine details
• Programmable inspection criteria for different board designs
• High-speed inspection to keep pace with production
• Integration with the line’s control system for automated handling of failed boards
• Data logging and analysis capabilities for process improvement

AOI systems allow for the detection of defects that might be missed by visual inspection alone. They can be positioned at various points in the SMT line, with post-reflow inspection being particularly common.

Automated X-ray Inspection (AXI) System

Automated X-ray Inspection (AXI) systems complement AOI by allowing inspection of hidden solder joints and internal features of components. This is valuable for inspecting ball grid array (BGA) components, chip-scale packages, and other devices where solder joints are not visible from the surface.

AXI features:

• High-resolution X-ray imaging
• 2D and 3D inspection capabilities
• Programmable inspection criteria for different component types
• Automated handling systems for high-throughput inspection
• Radiation shielding for operator safety
• Advanced image processing algorithms for defect detection

AXI systems are particularly valuable for high-reliability applications where the quality of hidden solder joints is critical. They can detect issues such as voids in solder joints, insufficient solder, and component internal defects that are not detectable by other inspection methods.

Different Types of SMT Line Layouts

The layout of an SMT line can significantly impact its efficiency, flexibility, and overall performance. Different layouts are suited to different production requirements, factory spaces, and manufacturing strategies.

In-line Layout

The in-line layout is perhaps the most straightforward configuration for an SMT line. In this arrangement, machines are placed in a straight line, following the sequence of the assembly process.

Key characteristics:

• Simple, linear flow of PCBs through the production process
• Easy to understand and manage
• Efficient use of floor space for smaller production runs
• Suitable for facilities with long, narrow spaces

While the in-line layout is simple and intuitive, it may not be the most efficient use of space for larger production volumes. It can also be less flexible when it comes to accommodating different board sizes or product types.

U-Shaped Layout

The U-shaped layout arranges SMT equipment in a U configuration, with the input and output points close to each other. This layout is popular in many manufacturing environments due to its efficiency and flexibility.

Key advantages:

• Reduced walking distance for operators
• Easier supervision and communication across the line
• Flexibility to adjust production flow
• Efficient use of space, particularly in square or rectangular factory floors

The U-shaped layout can be particularly beneficial in lean manufacturing environments, as it facilitates better communication and quicker response to issues.

L-Shaped Layout

The L-shaped layout, as the name suggests, arranges equipment in an L configuration. This layout can be an effective compromise when space constraints prevent a full U-shaped layout.

Key characteristics:

• Good use of corner spaces in manufacturing facilities
• Can accommodate longer lines in facilities with limited width
• Allows for some of the benefits of the U-shaped layout, such as reduced walking distances

The L-shaped layout can be particularly useful in facilities where architectural features or other equipment placements necessitate working around corners.

Cellular Layout

The cellular layout groups related machines into cells, each dedicated to producing a specific product or family of products. This layout is particularly suited to facilities that produce a variety of products in smaller quantities.

Key advantages:

• High flexibility to produce different products
• Reduced setup times when switching between products
• Improved operator familiarity with specific product lines
• Can improve quality by allowing specialization

Cellular layouts can be particularly effective in environments where quick changeovers between different products are necessary, or where different products require significantly different processes.

Turret Layout

The turret layout places a central component placement machine (often a high-speed chip shooter) at the center, with other equipment arranged around it in a circular or semi-circular configuration.

Key characteristics:

• Optimized for high-speed placement of small components
• Can achieve very high throughput for certain types of boards
• Efficient use of space for the placement function

The turret layout is less common than some other configurations and is typically used in high-volume production environments where a large number of small, similar components need to be placed quickly.

Dual Lane Layout

The dual lane layout essentially consists of two parallel SMT lines running side by side. This configuration can significantly increase throughput and provide flexibility in production.

Key advantages include:

• Increased production capacity without doubling floor space
• Flexibility to run different products on each lane
• Redundancy in case of equipment failure on one lane
• Can be used to separate high-volume and low-volume production

Dual lane layouts are often used in high-volume production environments where maximizing throughput is a priority.

Modular Layout

The modular layout uses standardized, self-contained units that can be easily reconfigured or expanded. Each module typically contains a full set of SMT equipment.

Modular layout advantages:

• High flexibility to adjust production capacity
• Easy to scale production up or down
• Can facilitate easier maintenance and upgrades
• Allows for parallel processing of different products

Modular layouts are particularly useful in industries with rapidly changing product lines or volatile demand, as they allow for quick adjustments to production capacity and capabilities.

Mixed Layout (Hybrid Layout)

The mixed or hybrid layout combines elements from different layout types to create a customized solution that best fits specific production needs.

Main characteristics:

• Tailored to specific production requirements
• Can combine the advantages of multiple layout types
• May evolve over time as production needs change

Mixed layouts are often the result of careful analysis of production flow, space constraints, and specific product requirements. They can be highly effective when designed well, but require careful planning to ensure optimal efficiency.

Advantages of Using SMT Lines

SMT lines have revolutionized electronics manufacturing, offering numerous advantages over traditional through-hole assembly methods. How can these advantages optimize your manufacturing process?

Higher ComponentDensity

SMT’s core advantage is the ability to achieve much higher component density on PCBs, due to several factors:

• Smaller component sizes: SMDs are typically much smaller than their through-hole counterparts.
• Dual-sided mounting: SMT allows components to be mounted on both sides of the PCB.
• Reduced lead spacing: SMDs often have closer lead spacing, allowing for more compact layouts.

This higher component density enables the creation of more complex circuits in smaller form factors, which is for developing compact, portable electronic devices. For instance, modern smartphones pack an incredible amount of functionality into a small space, which would be impossible without SMT.

Smaller and Lighter Products

The ability to create denser PCBs directly translates to smaller and lighter end products. This advantage has far-reaching implications across various industries:

• Consumer Electronics: Enables the production of slim smartphones, lightweight laptops, and compact wearable devices.
• Automotive: Allows for more electronic systems to be integrated into vehicles without significant weight increases.
• Aerospace: Crucial for reducing the weight of avionics systems, directly impacting fuel efficiency and payload capacity.
• Medical Devices: Facilitates the development of smaller, more portable medical equipment and implantable devices.

The trend towards miniaturization in electronics, largely enabled by SMT, has improved product portability and opened up new application areas that were previously unfeasible due to size constraints.

Improved Electrical Performance

SMT offers several advantages in terms of electrical performance:

• Shorter connection paths: The reduced size of SMDs and their direct mounting on the PCB surface results in shorter electrical paths.
• Lower parasitic capacitance and inductance: Shorter leads and smaller component sizes reduce unwanted electrical effects.
• Better high-frequency performance: SMT is particularly advantageous for high-frequency applications due to reduced lead inductance.

These electrical performance improvements are critical in high-speed digital circuits, RF applications, and power electronics. For example, the improved high-frequency performance of SMT has been instrumental in the development of faster wireless communication technologies.

Cost Savings

While the initial investment in SMT equipment can be substantial, the technology offers significant cost savings in the long run:

• Reduced material costs: SMDs typically use less material than through-hole components.
• Higher production speeds: Automated SMT assembly is much faster than through-hole assembly.
• Lower labor costs: The high level of automation in SMT reduces the need for manual assembly.
• Improved yield: Advanced process control in SMT lines can lead to fewer defects and higher production yields.

These cost savings become particularly significant in high-volume production scenarios. The ability to produce more units in less time with fewer defects can dramatically improve a manufacturer’s bottom line.

Increased Efficiency

SMT lines are inherently more efficient than traditional assembly methods:

• Faster assembly speeds: Pick-and-place machines can place thousands of components per hour.
• Parallel processing: Many SMT lines allow for simultaneous processing of multiple boards.
• Reduced handling: Once a board enters the SMT line, it typically requires minimal human intervention until completion.
• Quick changeovers: Modern SMT equipment can be quickly reconfigured for different products.

This increased efficiency reduces production time and allows manufacturers to be more responsive to market demands, enabling shorter lead times and more flexible production schedules.

Better Signal Integrity

Signal integrity is important in modern electronic devices as clock speeds and data rates continue to increase:

• Reduced electromagnetic interference: Shorter leads and smaller loop areas in SMT designs help minimize EMI.
• Consistent impedance: The more predictable and consistent layout of SMT components allows for better control of trace impedances.
• Lower crosstalk: Shorter connection paths and smaller components can reduce signal crosstalk between adjacent traces.

Automation Compatibility

SMT is inherently well-suited for automation, which brings several benefits:

• Consistency: Automated processes ensure consistent component placement and soldering.
• Precision: SMT equipment can achieve placement accuracies measured in micrometers.
• Traceability: Automated systems can log detailed production data for quality control and process improvement.
• Scalability: SMT lines can be easily scaled up to meet increased production demands.

The high level of automation in SMT improves production efficiency and enhances quality control. AOI and X-ray inspection systems can detect defects that might be missed by human inspectors, ensuring higher product quality and reliability.

Disadvantages of Using SMT Lines

The potential drawbacks:

Difficulty in Manual Assembly and Repair

SMT increases the difficulty in manual assembly and repair processes:

• Small component sizes: Many SMDs are extremely small, making them difficult to handle without specialized tools.
• Fine pitch leads: The close spacing between component leads can make manual soldering challenging and increase the risk of solder bridges.
• Limited access: In densely packed boards, accessing individual components for repair can be problematic.

These factors can lead to several issues:

• Increased skill requirements: Technicians need specialized training and experience to work effectively with SMT assemblies.
• Longer repair times: The complexity of SMT boards can increase the time required for troubleshooting and repair.
• Higher repair costs: Specialized equipment and skilled labor for SMT repair can be more expensive than for through-hole technology.

To address these challenges, manufacturers often invest in specialized rework stations and provide extensive training for their technicians. However, for some applications, the difficulty of field repairs may necessitate a “replace rather than repair” approach for faulty units.

Challenges in Handling Small Components

The miniaturization that makes SMT so advantageous also presents significant handling challenges:

• Component loss: Tiny SMDs can be easily lost or misplaced during handling.
• Static sensitivity: Many SMDs are highly sensitive to electrostatic discharge, requiring careful handling procedures.
• Placement precision: The small size of components demands extremely precise placement, which can be challenging even with automated equipment.

These handling challenges can impact various aspects of the manufacturing process:

• Increased setup time: Loading tiny components into feeders or trays for automated placement can be time-consuming and requires careful attention.
• Quality control issues: Mishandled components may lead to defects that are difficult to detect until final testing.
• Inventory management complexities: Tracking and managing inventory of numerous small components can be more challenging than with larger through-hole parts.

To mitigate these issues, manufacturers typically implement strict handling procedures, use specialized tools for component manipulation, and may employ automated storage and retrieval systems for component management.

Unsuitability for Components Under Frequent Mechanical Stress

SMT may not be the best choice for components that are subject to significant mechanical stress:

• Limited mechanical strength: The small solder joints in SMT provide less mechanical support than through-hole connections.
• Vulnerability to vibration and shock: In high-vibration environments, SMT components may be more prone to failure than their through-hole counterparts.
• Thermal cycling issues: The different thermal expansion rates of components and PCBs can stress solder joints over time, particularly in applications with frequent temperature changes.

Which can be problematic in certain applications:

• Connectors: High-use connectors may require through-hole mounting for better mechanical stability.
• Automotive and aerospace: In these industries, where vibration and thermal cycling are common, additional measures may be needed to ensure the reliability of SMT assemblies.
• Industrial equipment: Heavy machinery or equipment subject to constant vibration may require alternative mounting methods for certain components.

Designers may use a mix of SMT and through-hole technology, choosing the appropriate method for each component based on its mechanical requirements to address these issues. Techniques such as underfilling (applying epoxy under components) can be used to enhance the mechanical strength of SMT assemblies.

Reliability Concerns with Smaller Solder Joints

The reduced size of solder joints in SMT can lead to potential reliability issues:

• Increased susceptibility to voids: Smaller solder joints are more prone to void formation during the reflow process.
• Reduced thermal dissipation: Smaller joints may not conduct heat as effectively, potentially leading to thermal management issues.
• Stress concentration: The smaller contact area can lead to higher stress concentration in the solder joints, potentially reducing long-term reliability.

which reflects in several ways:

• Reduced lifespan: Products may have a shorter operational life due to premature solder joint failure.
• Intermittent faults: Stress on solder joints can lead to intermittent connection issues that are difficult to diagnose.
• Environmental sensitivity: SMT assemblies may be more sensitive to extreme environmental conditions, such as high humidity or corrosive atmospheres.

The following strategies are often used for the above concerns:

• Advanced solder paste formulations: Using solder pastes designed to minimize void formation and improve joint strength.
• Optimized reflow profiles: Carefully controlling the reflow process to ensure optimal solder joint formation.
• Design for reliability: Implementing design rules that account for thermal expansion and mechanical stress.
• Conformal coating: Applying protective coatings to shield assemblies from environmental factors.

These strategies may add complexity and cost to the manufacturing process.

SMT vs. DIP: Key Differences

What are the main differences between SMT and DIP (Dual In-line Package)?

Define DIP and Its Characteristics

Dual In-line Package is a traditional electronic component packaging method that has been widely used since the 1960s.

DIP has the following main characteristics:

• Through-hole mounting: DIP components have long leads that are inserted through holes in the PCB and soldered on the opposite side.
• Standardized pin spacing: Typically 0.1 inches (2.54 mm) between pins, which allows for easy manual insertion and prototyping.
• Larger component size: DIP components are generally larger than their SMT counterparts.
• Visual pin identification: The pins of DIP components are easily visible and accessible, facilitating manual assembly and troubleshooting.

DIP technology has been widely used in various applications, particularly in situations where manual assembly, easy replacement, and robust mechanical connections are prioritized.

Component Mounting Differences

The most fundamental difference lies in how components are mounted on the PCB:

SMT

• Components are mounted directly onto the surface of the PCB.
• Requires solder pads on the PCB surface.
• Allows for component placement on both sides of the PCB.
• Enables higher component density due to smaller component sizes and lack of through-holes.

DIP

• Components are inserted into holes drilled through the PCB.
• Requires plated through-holes in the PCB.
• Typically limits component placement to one side of the PCB.
• Lower component density due to larger component sizes and the space required for through-holes.

Soldering Methods Comparison

The soldering processes is also quite different:

SMT Soldering

• Primarily uses reflow soldering.
• Solder paste is applied to the PCB using a stencil.
• Components are placed on the solder paste.
• The entire assembly is heated in a reflow oven, melting the solder paste to form joints.
• Allows for simultaneous soldering of all components.
• Provides better control over the amount of solder used.

DIP Soldering

• Typically uses wave soldering or manual soldering.
• In wave soldering, the PCB passes over a wave of molten solder.
• Manual soldering is common for prototyping or low-volume production.
• Soldering is typically done on the opposite side of the board from where components are inserted.
• May require multiple steps for double-sided boards.

The SMT soldering process is generally faster and more suitable for high-volume production, while DIP soldering can be more forgiving for manual assembly and rework.

Applications Comparison

They are also best for different types of applications:

SMT Applications

• High-volume consumer electronics (smartphones, tablets, etc.)
• Compact devices where space is at a premium
• High-frequency applications due to shorter lead lengths
• Automated production environments
• Applications requiring high component density

DIP Applications

• Prototyping and low-volume production
• Educational and hobbyist projects
• Applications requiring easy component replacement
• Harsh environments where mechanical stress is a concern
• Legacy systems and some industrial applications

Production Efficiency and Cost Comparison

In terms of production efficiency and associated costs:

SMT

• Higher initial equipment costs for automated assembly lines
• Faster production speeds, especially for high-volume manufacturing
• Lower labor costs due to high level of automation
• More efficient use of PCB real estate, potentially reducing board size and cost
• Higher component placement accuracy, potentially reducing defects

DIP

• Lower initial equipment costs, especially for manual assembly
• Slower production speeds, particularly for complex boards
• Higher labor costs for manual assembly and through-hole soldering
• Less efficient use of PCB space, potentially leading to larger and more expensive boards
• More forgiving for manual assembly, potentially reducing training costs for small-scale production

Reliability and Performance Comparison

Both SMT and DIP have their strengths and weaknesses in terms of reliability and performance:

SMT Reliability and Performance

• Better performance in high-frequency applications due to shorter lead lengths
• Potentially higher vulnerability to mechanical stress and vibration
• Excellent for creating compact, lightweight devices
• May require more careful thermal management due to higher component density
• Generally better suited for fine-pitch, high-pin-count components

DIP Reliability and Performance

• More robust mechanical connection, better for high-stress environments
• Easier to replace individual components for repair or upgrade
• Generally lower frequency performance due to longer lead lengths
• More resistant to thermal cycling due to larger solder joints
• Limited in terms of miniaturization and high-speed performance
