Types of Conformal Coatings for PCB Protection

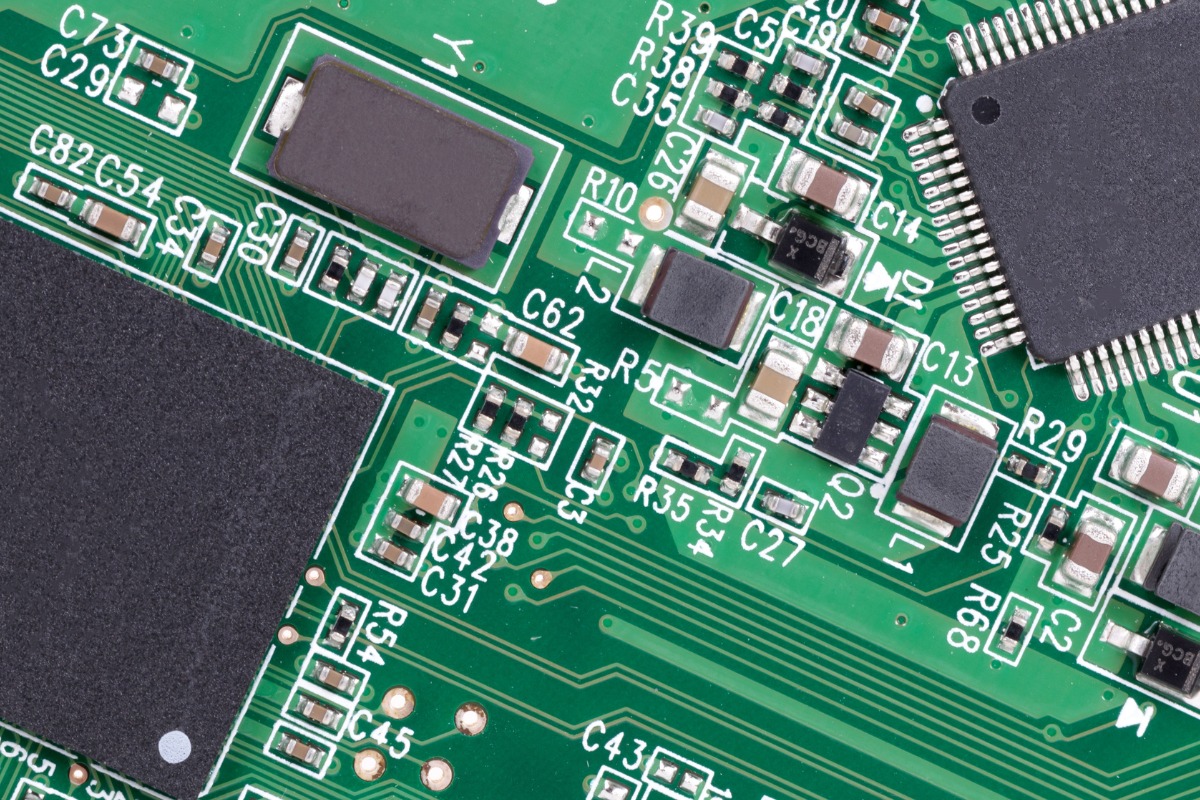

Introduction to Conformal Coatings

Conformal coatings quietly work behind the scenes to ensure that PCBs can withstand the rigours of their intended applications. These thin, protective films, typically 25-250 micrometers thick, are applied to the surface of a PCB, covering and protecting the solder joints, component leads, exposed traces, and other metallized areas from corrosion. By providing a dielectric barrier, conformal coatings maintain long-term surface insulation resistance (SIR) levels, ensuring the operational integrity of the assembly.

The primary purpose of conformal coatings is to shield PCBs from environmental factors that can lead to degradation and failure. These include moisture, salt spray, chemicals, and temperature extremes, all of which can cause corrosion, mold growth, and electrical failures. The protection provided by conformal coatings allows for higher voltage gradients and closer track spacing, enabling designers to meet the ever-increasing demands for miniaturization and reliability in modern electronics.

Conformal coatings are composed of polymeric resins, which form the backbone of the protective film. These resins are often dissolved in solvents to facilitate application and ensure proper flow and coverage. Additionally, various additives may be incorporated into the coating formulation to impart specific properties, such as improved adhesion, flexibility, or UV resistance.

The importance of conformal coatings cannot be overstated in today’s electronics landscape. As devices become smaller, more powerful, and are expected to function reliably in increasingly challenging environments, the need for effective PCB protection has never been greater. Industries such as automotive, aerospace, military, industrial, and consumer electronics rely heavily on conformal coatings to ensure the long-term performance and reliability of their products.

Moreover, the trend towards miniaturization and the growing demand for wearable electronics has further emphasized the need for conformal coatings. As PCBs are packed into smaller spaces and exposed to harsher conditions, such as human sweat in the case of wearables, the protective properties of conformal coatings become even more critical.

Types of Conformal Coatings

Conformal coatings come in a variety of formulations, each with its own unique set of properties and advantages. The main categories of conformal coatings include acrylic resin (AR), silicone resin (SR), urethane (polyurethane) resin (UR), epoxy, parylene, and emerging technologies such as nano-coatings.

Acrylic Resin (AR) Coatings

Acrylic resin coatings are among the most common and economical options for PCB protection. They are composed of thermoplastic acrylic polymers dissolved in a blend of organic solvents. AR coatings offer good dielectric strength and fair moisture and abrasion resistance. One of their key advantages is the ease of application and removal, as they can be readily dissolved using a variety of solvents without the need for agitation. This makes rework and field repairs practical and cost-effective. However, AR coatings have poor resistance to solvents and solvent vapors, which can limit their use in certain applications, such as those involving exposure to fuel vapors.

Silicone Resin (SR) Coatings

Silicone resin coatings provide excellent protection across a wide temperature range, making them ideal for applications exposed to extreme heat or cold. They offer good chemical resistance, moisture resistance, and flexibility due to their rubbery nature. However, this same property also makes them susceptible to abrasion. SR coatings are commonly used in high-humidity environments and have found applications in protecting LED lighting systems, as special formulations can be applied directly over LEDs without causing color shift or intensity reduction. The main drawback of SR coatings is the difficulty in removal, which often requires specialized solvents, long soak times, and agitation.

Urethane (Polyurethane) Resin (UR) Coatings

Urethane resin coatings are known for their excellent moisture and chemical resistance, as well as their superior abrasion resistance. When combined with their solvent resistance, UR coatings become very difficult to remove, often requiring specialized solvents, long soak times, and agitation, similar to SR coatings. UR coatings are commonly specified for aerospace applications, where exposure to fuel vapors is a primary concern.

Epoxy Conformal Coatings

Epoxy conformal coatings are typically two-part systems that cure to form a hard, durable coating. They provide excellent moisture resistance, chemical resistance, and abrasion resistance. Epoxy coatings also offer strong adhesion to the substrate, making them suitable for applications requiring a high level of protection. However, their rigidity can be a drawback, as they are less flexible than other coating types. Epoxy coatings are also notoriously difficult to remove once cured, which can complicate rework processes.

Parylene Conformal Coatings

Parylene coatings are applied using a unique vapor deposition process, resulting in a thin, uniform, and pinhole-free coating. They offer excellent dielectric strength and superior resistance to moisture, solvents, and extreme temperatures. The vapor deposition method allows for the creation of very thin coatings that still provide exceptional protection. However, the specialized equipment required for application and the difficulty in removal for rework purposes can be significant drawbacks.

Emerging Coating Technologies

As the electronics industry continues to evolve, so do the technologies used in conformal coatings. Nano-coatings, for example, are an emerging class of ultra-thin coatings that offer improved hydrophobicity and protection against moisture ingress. While these coatings are still in the early stages of development and adoption, they show promise for future applications where minimal coating thickness and weight are critical factors.

Properties and Benefits of Conformal Coatings

Conformal coatings offer a wide range of properties and benefits that make them indispensable for protecting PCBs in various applications. These properties can be broadly categorized into environmental protection, electrical properties, mechanical protection, enhanced reliability, and design benefits.

Environmental Protection

One of the primary functions of conformal coatings is to shield PCBs from the detrimental effects of their operating environment. Key environmental protection properties include:

Moisture resistance: Conformal coatings provide a barrier against moisture ingress, preventing corrosion and short circuits caused by exposure to humidity, condensation, or liquid water.
Chemical resistance: Many conformal coatings offer excellent resistance to a wide range of chemicals, including solvents, acids, bases, and other harsh substances that could otherwise damage the PCB and its components.
Temperature resistance: Some conformal coatings, particularly silicone and epoxy-based formulations, can withstand extreme temperature ranges, ensuring reliable operation in both high-heat and low-temperature environments.
UV resistance: Certain conformal coatings are formulated to resist degradation caused by exposure to ultraviolet (UV) light, which is particularly important for outdoor applications or those involving prolonged exposure to sunlight.

Electrical Properties

Conformal coatings play a crucial role in maintaining the electrical integrity of PCBs by providing insulation and preventing short circuits. Key electrical properties include:

Dielectric strength: Conformal coatings have high dielectric strength, which allows them to withstand high voltages without breaking down, thus preventing arcing and short circuits between closely spaced conductors.
Insulation resistance: The high insulation resistance of conformal coatings helps to maintain the electrical isolation between conductors, preventing leakage currents and ensuring the proper functioning of the PCB.

Mechanical Protection

In addition to environmental and electrical protection, conformal coatings also offer mechanical protection to PCBs and their components. Important mechanical properties include:

Abrasion resistance: Some conformal coatings, particularly urethane and epoxy-based formulations, provide excellent resistance to abrasion and wear, protecting the PCB from damage caused by friction or contact with other surfaces.
Flexibility and stress relief: Certain conformal coatings, such as silicone and some acrylic formulations, offer flexibility and stress relief, allowing the PCB to withstand vibrations, shocks, and thermal cycling without cracking or delaminating.

Enhanced Reliability

By providing comprehensive protection against environmental, electrical, and mechanical stresses, conformal coatings significantly enhance the reliability and longevity of PCBs. Some key benefits in this regard include:

Prevention of corrosion: By shielding the PCB from moisture and other corrosive agents, conformal coatings help to prevent the corrosion of conductors, solder joints, and component leads, which can lead to electrical failures and reduced service life.
Mitigation of tin whisker growth: Conformal coatings can help to mitigate the growth of tin whiskers, which are thin, conductive filaments that can grow from tin-based solder joints and cause short circuits. By encapsulating the solder joints, conformal coatings can suppress tin whisker growth and improve the long-term reliability of the PCB.
Protection against contamination: Conformal coatings act as a barrier against airborne contaminants, such as dust, dirt, and other particulates, which can accumulate on the PCB surface and cause electrical or mechanical issues.

Design Benefits

The use of conformal coatings can also offer several benefits in terms of PCB design and manufacturing, including:

Miniaturization possibilities: By providing insulation and allowing for higher voltage gradients and closer track spacing, conformal coatings enable designers to create more compact and densely populated PCBs without compromising on performance or reliability.
Increased component density: The protective properties of conformal coatings allow for the placement of components closer together, facilitating higher component densities and more efficient use of PCB real estate.
Reduced need for mechanical enclosures: In some cases, the use of conformal coatings can reduce or eliminate the need for bulky and expensive mechanical enclosures, as the coating itself provides sufficient protection against environmental factors.

Application Methods for Conformal Coatings

The effectiveness of a conformal coating in protecting a PCB depends not only on the type of coating selected but also on the method used to apply it. Several factors influence the choice of application method, including the type of coating, the size and complexity of the PCB, the required coating thickness, and the production volume.

Manual Spraying

Manual spraying is a common method for applying conformal coatings, particularly in low-volume production or prototyping. In this process, the coating is applied using a handheld spray gun or an aerosol can. The operator manually directs the spray over the PCB surface, ensuring even coverage. Manual spraying offers flexibility and control, allowing the operator to adjust the coating thickness and coverage as needed. However, the quality and consistency of the coating can vary depending on the skill and experience of the operator, and the process can be time-consuming, especially if masking is required to protect certain areas of the PCB from coating.

Automated Spraying

For higher-volume production, automated spraying systems can be employed to apply conformal coatings. These systems typically consist of a programmable spray nozzle mounted on a robotic arm or a conveyor system that moves the PCB under the spray head. Automated spraying ensures consistent coating thickness and coverage, reducing the variability associated with manual spraying. It also allows for faster production rates and can be easily integrated into existing manufacturing lines. However, automated spraying systems can be more expensive than manual methods and may require additional setup and programming time.

Selective Coating

Selective coating is an advanced form of automated spraying that uses programmable robotic nozzles to apply conformal coatings to specific areas of the PCB. This method is particularly useful for high-volume production and can eliminate the need for masking, as the robotic nozzles can precisely control the application of the coating. Selective coating systems often incorporate UV curing lamps to allow for rapid curing of the coating immediately after application. While selective coating offers high precision and efficiency, it requires specialized equipment and may have limitations in terms of the coating materials that can be used.

Dip Coating

Dip coating involves immersing the PCB into a tank containing the liquid conformal coating material. The PCB is then withdrawn from the tank at a controlled speed, allowing the excess coating to drip off and leaving a uniform layer on the surface. Dip coating is suitable for high-volume production and can coat both sides of the PCB simultaneously. However, this method typically requires extensive masking to protect connectors and other areas where coating is not desired. Additionally, the coating thickness can be affected by factors such as the immersion and withdrawal speeds, the viscosity of the coating material, and the drainage time.

Brush Coating

Brush coating is a manual application method that involves using a brush to apply the conformal coating to specific areas of the PCB. This method is often used for rework, repair, or touch-up purposes, as it allows for precise control over the application area. Brush coating is also useful for applying coatings to hard-to-reach areas or for small-scale production. However, brush coating can be labor-intensive and may result in inconsistent coating thickness and coverage, depending on the skill of the operator.

Emerging Application Technologies

As the electronics industry continues to evolve, new application technologies for conformal coatings are being developed to address the challenges of miniaturization, high-volume production, and the increasing complexity of PCBs. Some emerging technologies include:

Plasma deposition: This method involves using a plasma to deposit a thin, uniform layer of conformal coating onto the PCB surface. Plasma deposition can be used to apply ultra-thin coatings and can be easily integrated into automated production lines.
Vapor deposition: Similar to plasma deposition, vapor deposition techniques, such as chemical vapor deposition (CVD) and physical vapor deposition (PVD), can be used to apply thin, uniform coatings to PCBs. These methods offer high precision and can be used to coat complex geometries and hard-to-reach areas.

Thickness Measurement and Control

Proper control of conformal coating thickness is crucial for ensuring optimal protection and performance of PCBs. If the coating is too thin, it may not provide sufficient protection against environmental factors, while an excessively thick coating can lead to issues such as entrapment of solvents, bubbles, or other defects that can compromise the coating’s integrity. In this section, we will discuss the importance of coating thickness, typical thickness ranges for different coating types, and the various methods used to measure and control coating thickness.

Conformal coating thickness is typically measured in micrometers (μm) or mils (1 mil = 25.4 μm). The recommended thickness range varies depending on the type of coating material and the specific application requirements. For example, acrylic, epoxy, and urethane coatings are typically applied at thicknesses ranging from 25 to 130 μm (1 to 5 mils), while silicone coatings may be applied at thicknesses up to 210 μm (8 mils) to provide enhanced protection in harsh environments.

There are several methods for measuring conformal coating thickness, which can be broadly categorized into wet film and dry film techniques.

Wet Film Thickness Measurement

Wet film thickness gauges are used to measure the thickness of the coating immediately after application, while it is still in a liquid state. These gauges typically consist of a series of notches or teeth with calibrated depths. The gauge is placed directly onto the wet coating, and the thickness is determined by observing which notches or teeth are wetted by the coating. The measured wet film thickness can then be used to calculate the expected dry film thickness, taking into account the solids content of the coating material.

Wet film thickness measurement offers a quick and simple way to monitor coating thickness during the application process, allowing for real-time adjustments to ensure the desired thickness is achieved. However, this method is less accurate than dry film measurement techniques and may not account for variations in coating thickness due to surface irregularities or drainage effects.

Dry Film Thickness Measurement

Dry film thickness measurement techniques are used to determine the thickness of the conformal coating after it has fully cured. One common method is the use of a micrometer, which involves measuring the thickness of the PCB at several points before and after the coating application. The difference between the two measurements, divided by two, provides an estimate of the coating thickness on one side of the PCB. By taking multiple measurements across the PCB surface, the uniformity of the coating can also be assessed.

While the micrometer method is relatively simple and inexpensive, it can be time-consuming and may not provide accurate results for soft or compressible coatings. Additionally, this method requires access to the bare PCB surface, which may not always be possible.

Advanced Measurement Techniques

More advanced techniques for measuring conformal coating thickness include the use of specialized instruments such as eddy current probes and ultrasonic thickness gauges.

Eddy current probes work by generating a high-frequency electromagnetic field that interacts with the conductive substrate beneath the coating. The presence of the coating affects the strength of the electromagnetic field, allowing the probe to measure the coating thickness based on the changes in the field. Eddy current probes offer high accuracy and can provide non-destructive measurements, but they require the presence of a conductive substrate and may be affected by surface irregularities or variations in the substrate material.

Ultrasonic thickness gauges use high-frequency sound waves to measure the thickness of the conformal coating. The gauge emits a pulse of ultrasonic energy that travels through the coating, reflects off the substrate, and returns to the gauge. By measuring the time taken for the pulse to travel through the coating and back, the gauge can calculate the coating thickness based on the known velocity of sound in the coating material. Ultrasonic gauges offer high accuracy and can measure the thickness of coatings on non-conductive substrates, but they may require the use of a coupling medium to ensure good contact between the gauge and the coating surface.

Thickness Control in Application

Controlling the thickness of conformal coatings during the application process is essential for achieving consistent and reliable protection. Several factors can influence the coating thickness, including the application method, the viscosity of the coating material, the surface energy of the substrate, and environmental conditions such as temperature and humidity.

To maintain consistent coating thickness, manufacturers can employ various techniques, such as:

Adjusting the application parameters: For spray coating methods, the coating thickness can be controlled by adjusting factors such as the spray pressure, nozzle size, and distance between the nozzle and the PCB surface. For dip coating, the immersion and withdrawal speeds, as well as the drainage time, can be optimized to achieve the desired thickness.
Using thickness gauges: Incorporating wet film or dry film thickness gauges into the application process allows for real-time monitoring and adjustment of the coating thickness, ensuring that the desired thickness is consistently achieved.
Implementing process controls: Establishing and maintaining strict process controls, such as environmental conditions, material handling, and equipment maintenance, can help to minimize variations in coating thickness and ensure consistent results.
Utilizing automated systems: Automated coating application systems, such as selective coating or robotic spraying, can provide high levels of precision and repeatability, helping to maintain consistent coating thickness across multiple PCBs.

Curing Methods for Conformal Coatings

Proper curing of conformal coatings is essential for achieving optimal protection and performance. The curing process involves the transformation of the liquid coating material into a solid, durable film that adheres strongly to the PCB surface and provides the desired protective properties. In this section, we will discuss the importance of proper curing, the various curing methods used for conformal coatings, and the factors that affect cure time.

The choice of curing method depends on the type of conformal coating material, the application method, and the production requirements. Improper curing can lead to issues such as poor adhesion, reduced chemical and moisture resistance, and the entrapment of solvents or other volatiles within the coating, which can compromise its protective properties. Therefore, it is crucial to select the appropriate curing method and ensure that the coating is fully cured before subjecting the PCB to its intended operating environment.

Evaporative Curing

Evaporative curing, also known as air drying or room temperature curing, is the simplest and most common method for curing conformal coatings. In this process, the coating is allowed to cure by the evaporation of the solvent or carrier, leaving behind a solid, protective film. Evaporative curing is suitable for coatings that do not require any additional chemical reactions to achieve their final properties, such as acrylic and some polyurethane coatings.

The main advantage of evaporative curing is its simplicity and low cost, as it does not require any specialized equipment or energy input. However, the curing time can be relatively long, ranging from several minutes to several hours, depending on the coating thickness, the ambient temperature and humidity, and the volatility of the solvent. Additionally, evaporative curing may not achieve the same level of crosslinking and chemical resistance as other curing methods, particularly for thicker coatings or in high-humidity environments.

Moisture Curing

Moisture curing is a curing mechanism that relies on the reaction of the coating material with ambient moisture to form a crosslinked, protective film. This method is commonly used for silicone and some polyurethane coatings, which contain moisture-reactive functional groups that can hydrolyze and condense in the presence of water vapor.

Moisture curing offers several advantages, such as good adhesion, flexibility, and resistance to high temperatures and chemicals. However, the curing process can be sensitive to environmental conditions, particularly humidity and temperature. High humidity can accelerate the curing process, while low humidity can slow it down or even prevent complete curing. Similarly, low temperatures can retard the curing reaction, while high temperatures can cause excessive crosslinking and embrittlement of the coating.

To ensure proper moisture curing, it is important to control the environmental conditions during the application and curing process, maintaining a consistent temperature and humidity level. In some cases, a two-stage curing process may be used, where the coating is first allowed to dry by solvent evaporation, followed by a period of exposure to controlled humidity to complete the moisture curing reaction.

Heat Curing

Heat curing involves the use of elevated temperatures to accelerate the curing process and achieve a fully crosslinked, protective coating. This method is commonly used for coatings that require a chemical reaction to achieve their final properties, such as epoxy and some polyurethane coatings.

Heat curing can significantly reduce the curing time compared to room temperature methods, with typical curing cycles ranging from a few minutes to a few hours, depending on the coating material and the temperature used. The elevated temperature provides the energy needed to initiate and sustain the crosslinking reaction, resulting in a dense, highly resistant coating with excellent adhesion and chemical resistance.

However, heat curing also has some limitations and considerations. The high temperatures used during the curing process can cause thermal stress on the PCB and its components, particularly for temperature-sensitive devices. Therefore, it is important to select a curing temperature and duration that is compatible with the PCB materials and components, and to ensure uniform heating to avoid localized overheating or thermal gradients.

Heat curing also requires specialized equipment, such as ovens or heating chambers, which can add to the cost and complexity of the coating process. Additionally, the energy consumption associated with heat curing can be significant, particularly for high-volume production.

UV Curing

UV curing is a fast and efficient method for curing conformal coatings that utilizes ultraviolet (UV) light to initiate a photochemical reaction in the coating material. This method is particularly suitable for coatings that contain photoinitiators, such as some acrylic and polyurethane formulations.

In UV curing, the coating is exposed to high-intensity UV light, typically in the wavelength range of 200-400 nm. The UV energy activates the photoinitiators in the coating, which generate free radicals that initiate the polymerization and crosslinking reactions. The curing process is very rapid, with typical curing times ranging from a few seconds to a few minutes, depending on the coating thickness and the intensity of the UV light.

The main advantage of UV curing is its speed, which enables high-throughput production and reduces the overall processing time. UV curing also provides excellent coating properties, such as high hardness, chemical resistance, and adhesion, as the rapid curing process minimizes the time available for contaminants or moisture to interfere with the coating.

However, UV curing also has some limitations. The process requires direct exposure of the coating to the UV light, which can be challenging for complex PCB geometries or areas shadowed by tall components. In these cases, a secondary curing mechanism, such as heat or moisture curing, may be needed to ensure complete curing of the coating in the shadowed areas.

UV curing also requires specialized equipment, such as UV lamps and reflectors, which can add to the cost and complexity of the coating process. Additionally, UV light can be harmful to human eyes and skin, so proper safety precautions, such as shielding and personal protective equipment, must be used during the curing process.

Factors Affecting Cure Time

Several factors can influence the cure time of conformal coatings, regardless of the curing method used. These include:

Coating type: Different coating materials have different curing mechanisms and kinetics, which can affect the cure time. For example, acrylic coatings typically cure faster than polyurethane or silicone coatings, due to their simpler curing mechanism and lower viscosity.
Environmental conditions: Temperature and humidity can have a significant impact on the cure time, particularly for moisture-curing and evaporative-curing coatings. Higher temperatures and humidity levels can accelerate the curing process, while lower temperatures and humidity can slow it down.
Thickness of application: Thicker coatings generally require longer cure times than thinner coatings, as the curing process must progress through the entire thickness of the coating. This is particularly relevant for evaporative-curing coatings, where the solvent must diffuse through the coating thickness to evaporate.
Presence of contaminants: Contaminants on the PCB surface, such as flux residues, oils, or moisture, can interfere with the curing process and increase the cure time. Therefore, it is important to ensure that the PCB is clean and dry before applying the coating.

Removal and Rework of Conformal Coatings

Despite the many benefits of conformal coatings, there are situations where the coating may need to be removed or reworked. This may be necessary for repairs, component replacements, or modifications to the PCB. In this section, we will discuss the reasons for coating removal, the importance of proper removal techniques, and the various methods used for removing and reworking conformal coatings.

Removing conformal coatings can be a delicate and challenging process, as improper removal techniques can damage the PCB or its components. Therefore, it is essential to select the appropriate removal method based on the type of coating, the extent of removal required, and the sensitivity of the PCB components.

Solvent Removal

Solvent removal is one of the most common methods for removing conformal coatings, particularly for acrylic and some polyurethane coatings. This method involves the use of organic solvents, such as acetone, methyl ethyl ketone (MEK), or specialized conformal coating removers, to dissolve and remove the coating.

The solvent is typically applied to the coating surface using a brush, swab, or spray, and allowed to soak into the coating for a period of time. The softened coating is then removed using a scraper, brush, or other mechanical means. In some cases, multiple applications of the solvent may be necessary to completely remove the coating.

Solvent removal is relatively simple and effective, but it also has some limitations and considerations. The solvents used can be flammable, toxic, or environmentally hazardous, so proper safety precautions and disposal methods must be used. Additionally, some solvents may attack or degrade certain PCB materials or components, so compatibility must be carefully evaluated before use.

Peeling

Peeling is a mechanical removal method that involves physically pulling or lifting the conformal coating from the PCB surface. This method is typically used for thick, rubbery coatings, such as some silicone and flexible polyurethane formulations.

Peeling is often performed using tweezers, pliers, or other grasping tools to grip the edge of the coating and pull it away from the PCB. In some cases, a sharp blade or knife may be used to score the coating and create a starting point for peeling.

Peeling can be a quick and effective method for removing conformal coatings, but it also has some limitations. The process can be labor-intensive and time-consuming, particularly for large or complex PCBs. Additionally, peeling can cause mechanical stress on the PCB and its components, potentially leading to damage or delamination.

Thermal Methods

Thermal methods involve the use of heat to soften or degrade the conformal coating, allowing it to be removed from the PCB surface. The most common thermal method is the use of a soldering iron or hot air pencil to locally heat the coating and burn through it to access the underlying components.

Thermal methods can be effective for removing small areas of coating, particularly for repairs or component replacements. However, the high temperatures involved can cause thermal stress on the PCB and its components, potentially leading to damage or degradation. Additionally, the process can produce fumes or residues that may be hazardous or difficult to clean.

Microblasting

Microblasting, also known as abrasive blasting or powder blasting, involves the use of a fine, abrasive powder propelled by compressed air to remove the conformal coating. The abrasive particles impact the coating surface at high velocity, causing it to fracture and flake off the PCB.

Microblasting is particularly effective for removing hard, brittle coatings, such as parylene and some epoxy formulations. The process can be precisely controlled to remove coating from specific areas of the PCB, minimizing the risk of damage to adjacent components.

However, microblasting also has some limitations and considerations. The equipment required can be expensive and complex, and the process requires careful control of the abrasive particle size, air pressure, and nozzle distance to avoid damaging the PCB. Additionally, the removed coating and abrasive particles can create dust and debris that must be properly contained and disposed of.

Chemical Strippers

Chemical strippers are specialized formulations designed to remove conformal coatings by chemically breaking down the coating material. These strippers typically contain a blend of solvents, acids, or alkalis that react with the coating and cause it to dissolve or delaminate from the PCB surface.

Chemical strippers are available in various forms, such as liquids, gels, or aerosols, and can be applied by brushing, spraying, or dipping. The specific type of stripper used depends on the type of coating being removed, as well as the PCB materials and components.

Chemical strippers can be highly effective for removing conformal coatings, particularly for large or complex PCBs where other methods may be impractical. However, the use of chemical strippers also involves some risks and considerations. The chemicals used can be hazardous or corrosive, requiring proper safety precautions and disposal methods. Additionally, some strippers may attack or degrade certain PCB materials or components, so compatibility must be carefully evaluated before use.

Localized Removal Techniques

In some cases, only a small area of the conformal coating needs to be removed, such as for component replacement or repair. In these situations, localized removal techniques can be used to minimize the risk of damage to the surrounding areas of the PCB.

One common localized removal technique is the use of solvent pens or markers. These devices contain a felt or brush tip that is saturated with a solvent, allowing the user to precisely apply the solvent to the desired area of the coating. The softened coating can then be removed using a scraper or other mechanical means.

Another localized removal technique is the use of precision tools, such as dental picks or micro-scrapers, to mechanically remove the coating from specific areas of the PCB. This method requires a steady hand and careful control to avoid damaging the underlying components or circuitry.

Localized removal techniques can be particularly useful for densely populated PCBs, where the risk of damage to adjacent components is high. However, these techniques can also be time-consuming and labor-intensive, and may not be practical for large-scale removal or rework.

Industry Standards and Certifications

To ensure the quality and performance of conformal coatings, several industry standards and certifications have been established. These standards provide guidelines for the testing, evaluation, and qualification of conformal coatings, helping manufacturers to select the most appropriate coating for their specific application.

IPC-CC-830B Standard

The IPC-CC-830B standard, developed by the Association Connecting Electronics Industries (IPC), is one of the most widely recognized standards for conformal coatings. This standard provides a comprehensive set of requirements and test methods for evaluating the performance of conformal coatings, including:

Appearance and fluorescence
Insulation resistance
Moisture and insulation resistance
Thermal shock
Flexibility
Flammability
Fungus resistance
Dielectric withstanding voltage

The IPC-CC-830B standard is applicable to a wide range of conformal coating types, including acrylic, silicone, polyurethane, and epoxy. Coatings that meet the requirements of this standard are considered to be of high quality and suitable for use in a variety of applications.

MIL-I-46058C Standard

The MIL-I-46058C standard, originally developed by the United States Department of Defense, was the predecessor to the IPC-CC-830B standard. Although this standard has been inactive for new designs since 1998, it is still widely referenced and used for the qualification of conformal coatings, particularly in military and aerospace applications.

The MIL-I-46058C standard includes many of the same test methods and requirements as the IPC-CC-830B standard, and coatings that meet the requirements of one standard are generally considered to meet the requirements of the other.

UL746E Certification

The UL746E certification, developed by Underwriters Laboratories (UL), is a safety certification for conformal coatings used in electronic equipment. This certification evaluates the electrical and flammability properties of conformal coatings, ensuring that they do not pose a risk of fire or electrical hazard when used in consumer electronics.

To obtain UL746E certification, a conformal coating must undergo a series of tests, including:

Dielectric withstanding voltage
Insulation resistance
Comparative tracking index (CTI)
Flammability (UL94)

Coatings that meet the requirements of the UL746E certification are considered to be safe for use in consumer electronics and are often required by manufacturers and regulatory agencies.

Testing Parameters

In addition to the specific requirements of the IPC-CC-830B, MIL-I-46058C, and UL746E standards, conformal coatings are also evaluated using a variety of other testing parameters. These parameters help to ensure that the coating will perform as expected in its intended environment and application. Some common testing parameters include:

Appearance and fluorescence: Evaluates the visual appearance and UV fluorescence of the coating, which can be important for inspection and quality control purposes.
Insulation resistance: Measures the ability of the coating to resist electrical current flow, which is critical for preventing short circuits and other electrical failures.
Environmental stress testing: Evaluates the ability of the coating to withstand exposure to various environmental stresses, such as temperature extremes, humidity, salt spray, and chemical exposure.
Thermal shock and flexibility: Measures the ability of the coating to withstand rapid changes in temperature and mechanical stress without cracking or delaminating.

Certification Process

To obtain certification to the IPC-CC-830B, MIL-I-46058C, or UL746E standards, a conformal coating must undergo a rigorous testing and evaluation process. This process typically involves the following steps:

Selection of test samples: Representative samples of the conformal coating are selected for testing, along with appropriate test substrates and components.
Preparation of test samples: The test samples are prepared according to the requirements of the specific standard, including cleaning, masking, and coating application.
Testing: The prepared samples are subjected to the various test methods and requirements specified in the standard, such as insulation resistance, thermal shock, and flammability testing.
Evaluation of results: The test results are evaluated against the acceptance criteria specified in the standard, and a determination is made as to whether the coating meets the requirements for certification.
Certification: If the coating meets all of the requirements of the standard, it is granted certification and may be labeled or marketed as such.

To maintain certification, conformal coatings must undergo periodic retesting and evaluation to ensure that they continue to meet the requirements of the relevant standard. This ongoing testing helps to ensure the long-term quality and reliability of the coating.

Regulatory Considerations

In addition to industry standards and certifications, the use of conformal coatings is also subject to various regulatory requirements. These requirements are designed to ensure the safety and environmental compatibility of conformal coatings, as well as to promote their proper use and disposal.

Occupational Safety and Health Administration (OSHA) Requirements

In the United States, the Occupational Safety and Health Administration (OSHA) sets standards for worker safety in the workplace, including requirements for the use of conformal coatings. These requirements are designed to protect workers from potential hazards associated with the use of these materials, such as exposure to solvents, fumes, and other chemicals.

Some key OSHA requirements related to conformal coatings include:

Hazard communication: Manufacturers and employers must provide workers with information about the hazards associated with the conformal coatings they use, including safety data sheets (SDSs) and proper labeling of containers.
Personal protective equipment (PPE): Workers must be provided with appropriate PPE, such as gloves, eye protection, and respiratory protection, when working with conformal coatings.
Ventilation: Work areas where conformal coatings are used must be properly ventilated to control exposure to fumes and vapors.
Storage and handling: Conformal coatings must be stored and handled in accordance with OSHA requirements, including proper labeling, storage in appropriate containers, and disposal of waste materials.

Environmental Protection Agency (EPA) Regulations

The United States Environmental Protection Agency (EPA) regulates the use and disposal of conformal coatings to minimize their impact on the environment. Some key EPA regulations related to conformal coatings include:

VOC regulations: Many conformal coatings contain volatile organic compounds (VOCs), which can contribute to air pollution and ozone depletion. The EPA sets limits on the VOC content of conformal coatings and requires manufacturers to use low-VOC or VOC-free formulations where possible.
Hazardous waste regulations: Some conformal coatings and their waste products may be classified as hazardous waste under EPA regulations. Manufacturers and users of these materials must follow proper disposal procedures to prevent environmental contamination.
Ozone-depleting substances: Some older conformal coating formulations may contain ozone-depleting substances, such as chlorofluorocarbons (CFCs). The use of these substances is now heavily restricted or prohibited under EPA regulations.

Regional Regulations

In addition to federal regulations, the use of conformal coatings may also be subject to state and local regulations. For example, the California Air Resources Board (CARB) sets strict limits on the VOC content of conformal coatings sold or used in the state of California.

Similarly, the European Union has its own set of regulations governing the use of conformal coatings, including the Restriction of Hazardous Substances (RoHS) directive and the Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH) regulation. These regulations restrict the use of certain hazardous substances in electronic products and require manufacturers to disclose information about the chemicals used in their products.

Global Harmonized System (GHS)

The Globally Harmonized System of Classification and Labelling of Chemicals (GHS) is an international standard for the classification and labeling of hazardous chemicals, including conformal coatings. The GHS provides a standardized approach to hazard communication, including requirements for labeling and safety data sheets (SDSs).

Under the GHS, conformal coatings must be classified according to their physical, health, and environmental hazards, and this information must be communicated to users through appropriate labeling and SDSs. The GHS also sets requirements for the format and content of SDSs, ensuring that users have access to consistent and reliable information about the hazards associated with the materials they use.

Emerging Environmental Concerns

As awareness of the environmental impact of human activities continues to grow, new regulations and standards are emerging to address these concerns. In the context of conformal coatings, some emerging environmental concerns include:

Global Warming Potential (GWP): Some conformal coating formulations may contain compounds with high global warming potential, such as hydrofluorocarbons (HFCs). Manufacturers are increasingly moving towards low-GWP or GWP-free formulations to minimize their environmental impact.
Sustainable coating options: There is growing interest in the development and use of sustainable conformal coating options, such as bio-based or renewable materials, as well as coatings with reduced environmental impact throughout their lifecycle.

Comparison with Other PCB Protection Methods

Other common PCB protection methods include potting and encapsulation. In this section, we will compare conformal coating with these alternative methods, discussing their differences, advantages, and limitations.

Conformal Coating vs. Potting

Potting is a process in which the PCB and its components are completely encased in a solid, protective material, typically a thermosetting polymer such as epoxy or polyurethane. The potting material is poured or injected into a mold or housing containing the PCB, and then cured to form a solid, monolithic block.

Compared to conformal coating, potting offers several advantages:

Higher level of protection: Potting provides a thicker, more robust layer of protection than conformal coating, making it suitable for applications that require the highest level of protection against mechanical stress, shock, and vibration.
Better sealing: Potting completely seals the PCB and its components, providing excellent protection against moisture, dust, and other contaminants.
Improved thermal management: The potting material can help to dissipate heat from the PCB and its components, improving thermal management and reducing the risk of overheating.

However, potting also has some limitations compared to conformal coating:

Increased weight and size: Potting adds significant weight and bulk to the PCB assembly, which can be a disadvantage in applications where size and weight are critical factors.
Difficult to rework: Once a PCB has been potted, it is very difficult to access or replace individual components without damaging the entire assembly.
Higher cost: Potting is generally more expensive than conformal coating, due to the higher material costs and the need for specialized equipment and tooling.

Conformal Coating vs. Encapsulation

Encapsulation is a process in which the PCB and its components are completely enclosed in a protective shell or housing, typically made of plastic or metal. The encapsulant material is molded or formed around the PCB, creating a sealed, self-contained unit.

Like potting, encapsulation offers a higher level of protection than conformal coating, making it suitable for applications that require the highest level of protection against mechanical stress, shock, and vibration. Encapsulation also provides excellent sealing against moisture, dust, and other contaminants.

However, encapsulation also has some limitations compared to conformal coating:

Increased size and weight: Encapsulation adds significant bulk and weight to the PCB assembly, which can be a disadvantage in applications where size and weight are critical factors.
Higher cost: Encapsulation is generally more expensive than conformal coating, due to the higher material costs and the need for specialized equipment and tooling.
Limited access: Once a PCB has been encapsulated, it is very difficult to access or replace individual components without damaging the entire assembly.

Factors Influencing Protection Method Choice

The choice between conformal coating, potting, and encapsulation depends on a variety of factors, including:

Environmental exposure levels: The level of protection required will depend on the expected environmental exposure levels, such as temperature, humidity, vibration, and chemical exposure.
Repairability requirements: If the PCB assembly needs to be easily repairable or serviceable, conformal coating may be the preferred option, as it allows for easier access to individual components.
Cost considerations: The cost of the protection method, including materials, equipment, and labor, must be balanced against the level of protection required and the overall cost of the end product.
Production volume: The choice of protection method may also be influenced by the production volume, as some methods, such as potting and encapsulation, may be more cost-effective for high-volume production runs.

Hybrid Protection Approaches

In some cases, a combination of protection methods may be used to achieve the desired level of protection while balancing cost and performance requirements. For example, a PCB assembly may be selectively potted or encapsulated in areas that require the highest level of protection, while other areas are protected with conformal coating.

Hybrid protection approaches can offer the best of both worlds, providing targeted protection where it is needed most while minimizing the added cost and weight of full potting or encapsulation.

Case studies and examples of successful hybrid protection approaches include:

Automotive electronics: In automotive applications, hybrid protection approaches are commonly used to protect critical components, such as engine control modules and sensors, from harsh environmental conditions. For example, the PCB may be selectively potted in areas exposed to high levels of vibration or moisture, while other areas are protected with conformal coating.
Medical devices: In medical devices, hybrid protection approaches are used to ensure the reliability and safety of critical components, such as implantable devices and life-support equipment. For example, the PCB may be encapsulated in a biocompatible housing, while the internal components are protected with conformal coating to allow for easier servicing and repair.
Industrial controls: In industrial control applications, hybrid protection approaches are used to protect PCBs from harsh environmental conditions, such as high temperatures, vibration, and chemical exposure. For example, the PCB may be selectively potted in areas exposed to high levels of vibration or moisture, while other areas are protected with conformal coating to allow for easier maintenance and troubleshooting.
