Understanding and Identifying Common Circuit Board Components

Understanding the different types of components found on circuit boards and how to identify them is essential for anyone working with electronics, whether you’re a hobbyist, a student, or a professional.

In this comprehensive guide, we’ll explore the world of circuit board components, explore the various types of components you’re likely to encounter, their functions, and how to identify them. By the end of this article, you’ll have a solid foundation in circuit board components and be well-equipped to tackle your next electronics project with confidence.

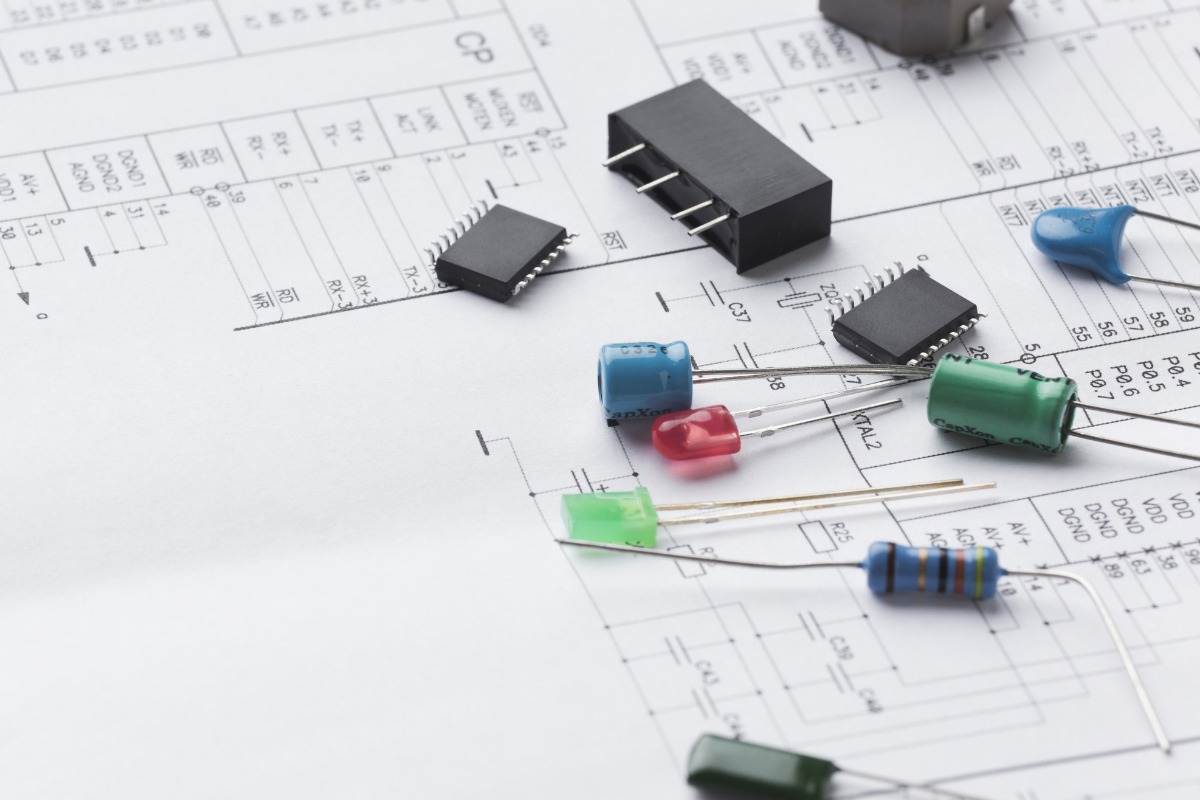

Overview of Common Circuit Board Components

Circuit board components can be broadly categorized into two main groups: passive components and active components. Passive components, such as resistors, capacitors, and inductors, do not require an external power source to function and do not amplify or switch signals. Active components, on the other hand, like transistors, diodes, and integrated circuits (ICs), require a power source and can amplify or switch electronic signals.

Passive vs Active Components

The fundamental difference between passive and active components lies in their ability to control and manipulate electrical energy. Passive components, while essential to the functioning of a circuit, do not have the capability to amplify or switch signals. They are called “passive” because they do not provide gain or control to the circuit. Instead, they perform functions such as limiting current flow, storing electrical charge, or filtering signals.

Active components, in contrast, can amplify or switch electronic signals, giving them the ability to control and manipulate the flow of electricity in a circuit. They require an external power source to function and are capable of introducing gain or controlling the direction of current flow. This distinction is crucial in understanding the roles that different components play within a circuit.

Common Component Categories

While there are numerous types of components found on circuit boards, some of the most common categories include:

Resistors: Used to control the flow of current and create voltage drops in a circuit.
Capacitors: Store electrical energy and can filter or smooth signals.
Inductors: Store energy in a magnetic field and can filter or tune circuits.
Diodes: Allow current to flow in only one direction and can be used for rectification or protection.
Transistors: Used for amplification and switching of electronic signals.
Integrated Circuits (ICs): Miniaturized circuits that perform complex functions, such as processing, memory, or signal conditioning.
Switches: Control the flow of current by opening or closing connections in a circuit.
Connectors: Allow for the connection of different components or circuits.

Each of these component categories plays a vital role in the functioning of electronic devices, and we’ll explore them in more detail in the following sections.

Passive Components

Passive components are the foundation of any electronic circuit, providing essential functions such as current limiting, energy storage, and signal filtering. In this section, we’ll take a closer look at three of the most common passive components: resistors, capacitors, and inductors.

Resistors

Resistors are components that resist the flow of electrical current, causing a voltage drop across their terminals. The relationship between voltage, current, and resistance is governed by Ohm’s law, which states that the current through a resistor is directly proportional to the voltage across it and inversely proportional to its resistance.

Resistors come in various types, including fixed resistors with a set resistance value and variable resistors (potentiometers) that allow for adjustable resistance. They are available in different packages, such as through-hole and surface-mount, to suit various circuit board designs.

To identify the resistance value of a resistor, you can refer to the color code printed on its body. The color code consists of bands that represent the resistance value and tolerance. By understanding the color code system, you can quickly determine the specifications of a resistor.

Common applications of resistors include:

Voltage division
Current limiting
Pull-up and pull-down resistors
Load balancing
Signal attenuation

Capacitors

Capacitors are components that store electrical energy in an electric field. They consist of two conductive plates separated by an insulating material called a dielectric. When a voltage is applied across the plates, an electric field forms, allowing the capacitor to store charge.

The capacitance of a capacitor, measured in farads (F), determines its ability to store charge. Common types of capacitors include ceramic, electrolytic, and tantalum capacitors, each with its own characteristics and applications.

Capacitors are often marked with their capacitance value and voltage rating. In some cases, the capacitance may be represented by a code, such as the three-digit code for ceramic capacitors, where the first two digits represent the significant figures and the third digit represents the multiplier.

Capacitors are used in a variety of applications, including:

Filtering and smoothing of power supply voltages
Coupling and decoupling of AC signals
Timing circuits
Energy storage in power supplies

Inductors

Inductors are components that store energy in a magnetic field when an electric current flows through them. They consist of a coil of wire, often wound around a magnetic core material, such as ferrite or iron.

The inductance of an inductor, measured in henries (H), determines its ability to store energy in a magnetic field. Inductors are available in various types, such as air-core, ferrite-core, and iron-core inductors, each with its own properties and applications.

Inductors are typically marked with their inductance value and current rating. In some cases, the inductance may be represented by a code similar to the one used for capacitors.

Common applications of inductors include:

Filtering of high-frequency signals
Energy storage in switch-mode power supplies
Impedance matching in radio frequency (RF) circuits
Noise suppression in electronic systems

Active Components

Active components are the driving force behind the functionality of electronic circuits, providing amplification, switching, and signal processing capabilities. In this section, we’ll explore three key active components: transistors, diodes, and integrated circuits (ICs).

Transistors

Transistors are semiconductor devices that can amplify or switch electronic signals. They are the building blocks of modern electronics and are found in virtually every electronic device.

The two main types of transistors are bipolar junction transistors (BJTs) and field-effect transistors (FETs). BJTs are current-controlled devices that consist of three regions: the emitter, base, and collector. By applying a small current to the base, a larger current can flow between the emitter and collector, allowing for amplification. FETs, on the other hand, are voltage-controlled devices that use an electric field to control the flow of current through a channel.

Transistors are available in various packages, such as through-hole and surface-mount, and are often marked with their part number or a code that identifies their type and specifications. To determine the pinout of a transistor, you can refer to its datasheet or use a transistor tester.

Common applications of transistors include:

Amplification of audio and radio frequency signals
Switching in digital circuits
Voltage regulation in power supplies
Current control in motor drivers

Diodes

Diodes are semiconductor devices that allow current to flow in only one direction, from the anode to the cathode. They act as one-way valves for electrical current and are used for rectification, protection, and signal conditioning.

Common types of diodes include:

Rectifier diodes: Used to convert alternating current (AC) to direct current (DC)
Zener diodes: Provide a stable reference voltage and are used for voltage regulation
Light-emitting diodes (LEDs): Emit light when current flows through them and are used for indication and lighting

Diodes are typically marked with a band or symbol that indicates the cathode end. The polarity of a diode is crucial for proper circuit operation, as installing a diode backwards can lead to malfunction or damage.

Applications of diodes include:

Rectification in power supplies
Overvoltage protection
Isolation of signals
Clipping and clamping of waveforms

Integrated Circuits (ICs)

Integrated circuits (ICs) are miniaturized electronic circuits that consist of multiple components, such as transistors, diodes, and resistors, fabricated onto a single semiconductor substrate. ICs are the backbone of modern electronics, enabling complex functions to be performed in a small, efficient package.

ICs come in a wide variety of types, each designed for specific applications. Some common types of ICs include:

Microcontrollers: Programmable devices that contain a processor, memory, and input/output peripherals
Operational amplifiers (op-amps): High-gain amplifiers used for signal conditioning and mathematical operations
Logic gates: Perform boolean logic functions and are the building blocks of digital circuits

ICs are packaged in various formats, such as through-hole DIP (dual in-line package) and surface-mount packages like SOIC (small-outline integrated circuit) and QFP (quad flat package). They are marked with their part number, which can be used to identify their function and specifications by referring to the manufacturer’s datasheet.

Applications of ICs span across virtually every aspect of modern electronics, including:

Signal processing and conditioning
Data storage and computation
Power management and regulation
Communication and networking

Other Common Components

In addition to passive and active components, there are several other types of components commonly found on circuit boards. These components serve various purposes, such as switching, isolation, and frequency generation. In this section, we’ll explore switches, relays, connectors, and crystal oscillators.

Switches

Switches are electromechanical components that allow for the manual control of current flow in a circuit. They are used to turn devices on and off, select between different settings, or trigger specific functions.

Common types of switches include:

Toggle switches: Have a lever that can be moved between two or more positions to open or close a circuit
Pushbutton switches: Require the user to press a button to activate or deactivate a circuit
DIP (dual in-line package) switches: Consist of multiple switches in a single package and are often used for setting configuration options

Switches are available in various form factors and are often marked with their contact arrangement (e.g., SPST, SPDT, DPDT) and electrical ratings. To identify the connections of a switch, you can refer to its datasheet or use a continuity tester to determine which terminals are connected in each position.

Applications of switches include:

Power control in electronic devices
Mode selection in multi-function devices
User input in human-machine interfaces

Relays

Relays are electrically operated switches that use an electromagnet to mechanically control the opening and closing of contacts. They allow a low-power signal to control a high-power circuit, providing isolation and protection.

Relays come in two main types:

Electromechanical relays (EMRs): Use a physical armature and contacts to switch the circuit
Solid-state relays (SSRs): Use semiconductor devices to perform the switching function without moving parts

Relays are typically marked with their coil voltage, contact arrangement, and electrical ratings. The pinout of a relay can be determined by referring to its datasheet or by visually inspecting the relay’s base.

Applications of relays include:

Switching high-current loads, such as motors and heaters
Isolating low-voltage control circuits from high-voltage power circuits
Implementing safety interlocks and emergency stop functions

Connectors

Connectors are components that allow for the electrical and mechanical connection between different parts of a circuit or between a circuit and external devices. They provide a means for transferring power and signals while allowing for easy assembly and disassembly.

Common types of connectors include:

Pin headers: Consist of a row of pins that mate with a corresponding socket
Terminal blocks: Provide a convenient way to connect wires to a circuit board
USB (Universal Serial Bus) connectors: Enable the connection of peripheral devices to a computer or other host device

Connectors are available in various sizes, shapes, and pin counts to suit different applications. They are often marked with their type, number of positions, and pitch (spacing between pins). To identify the pinout of a connector, you can refer to its datasheet or use a continuity tester to map the connections.

Applications of connectors include:

Providing power and signal interfaces between circuit boards
Connecting sensors, actuators, and other external devices to a system
Enabling modular design and easy replacement of components

Crystal Oscillators

Crystal oscillators are electronic components that generate a precise frequency reference signal using the piezoelectric effect of a quartz crystal. They provide a stable clock source for timing-critical applications.

Crystal oscillators work by applying an electric field to a quartz crystal, causing it to vibrate at its resonant frequency. This mechanical vibration is converted back into an electrical signal, which is then amplified and used as a clock reference.

Crystal oscillators are available in various package types, such as through-hole and surface-mount, and are often marked with their frequency and load capacitance. The pinout of a crystal oscillator can be determined by referring to its datasheet.

Applications of crystal oscillators include:

Providing a stable clock source for microcontrollers and digital circuits
Generating precise timing signals for communication protocols
Synchronizing multiple devices in a system

Component Identification Techniques

Identifying components on a circuit board is a crucial skill for anyone working with electronics. Whether you’re troubleshooting a malfunctioning device, repairing a damaged board, or reverse-engineering a circuit, being able to recognize and understand the various components is essential.

Visual Inspection

Visual inspection is often the first step in identifying components on a circuit board. By carefully examining the board and its components, you can gain valuable information about their type, value, and function.

When performing a visual inspection, look for the following key characteristics:

Size and shape: Components come in various sizes and shapes, which can help narrow down their type. For example, resistors are typically small, cylindrical components, while capacitors may be larger and have a round or rectangular shape.
Markings and codes: Many components have markings or codes printed on their body that indicate their value, tolerance, or part number. Resistors often use a color code system, while capacitors may have their capacitance and voltage rating printed directly on them. Integrated circuits (ICs) typically have their part number marked on the package.
Orientation and placement: The orientation and placement of components on the board can provide clues about their function. For example, power supply components are often located near the power input, while decoupling capacitors are typically placed close to ICs.

To aid in visual inspection, you can use magnification tools, such as a magnifying glass or microscope, to better see small components and their markings. Good lighting is also essential for accurately identifying components.

When interpreting component markings and codes, it’s helpful to have reference materials on hand, such as component datasheets, code tables, and identification guides. These resources can help you decipher the meaning of various markings and codes.

Understanding and Reading PCB Schematics

PCB schematics are graphical representations of the electrical connections and components in a circuit. They provide a roadmap for understanding how the circuit works and can be invaluable for identifying components and their functions.

To effectively use schematics for component identification, it’s important to understand the common symbols used to represent different components. For example, resistors are typically represented by a zigzag line, while capacitors are shown as two parallel lines. Transistors and diodes have their own unique symbols, as do other components like switches, connectors, and ICs.

In addition to the symbols, schematics also include component values and specifications. Resistor values are often given in ohms (Ω), while capacitor values are typically in farads (F) or microfarads (μF). ICs and other complex components may have their part number or a reference designator listed on the schematic.

It’s important to understand the relationship between the schematic and the physical PCB layout. The schematic shows the electrical connections between components, while the PCB layout shows their physical placement on the board. By cross-referencing the schematic with the PCB layout, you can more easily locate and identify specific components.

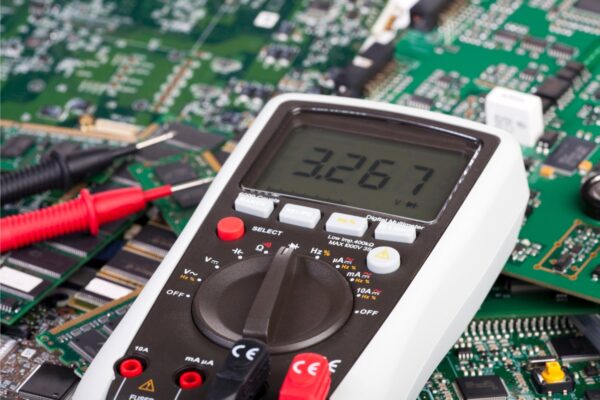

Testing and Measurement

In some cases, visual inspection and schematic analysis may not be enough to conclusively identify a component or determine its functionality. This is where testing and measurement come into play.

There are several common tools used for testing and measuring components:

Multimeters: Used to measure voltage, current, and resistance. They can be used to test the continuity of connections, measure the resistance of resistors, and check for short circuits or open connections.
Oscilloscopes: Used to visualize and measure electrical signals over time. They can be used to analyze the behavior of active components like transistors and ICs, and to diagnose issues like signal distortion or noise.
Component testers: Dedicated devices that can automatically identify and measure the value of components like resistors, capacitors, and inductors.

When testing components, it’s important to follow proper procedures and take necessary safety precautions. Always ensure that the circuit is powered off and any stored energy is discharged before handling components. When using a multimeter, be sure to select the appropriate measurement range and connect the leads properly to avoid damage to the meter or the component being tested.

Here are some basic testing procedures for common component types:

Resistors: To test a resistor, set your multimeter to the resistance measurement mode and connect the leads to the resistor’s terminals. The meter should display the resistor’s value in ohms.
Capacitors: To test a capacitor, you’ll need a capacitance meter or a multimeter with a capacitance measurement function. Disconnect the capacitor from the circuit and connect the meter leads to its terminals. The meter will display the capacitance value.
Diodes: To test a diode, set your multimeter to the diode test mode. Connect the red lead to the anode and the black lead to the cathode. The meter should display a forward voltage drop of around 0.6V for a silicon diode. Reverse the leads; the meter should display an open circuit or a very high resistance.
Transistors: Testing transistors requires a transistor tester or a multimeter with a transistor testing function. The tester will guide you through the process of connecting the leads to the transistor’s terminals and will display the transistor’s type (NPN or PNP) and its gain (hFE).
